Products Description

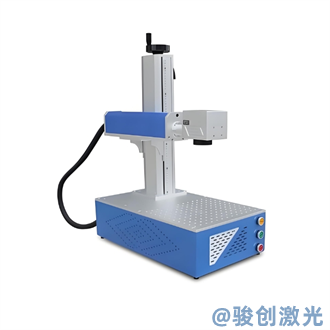

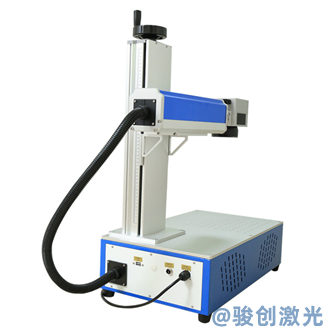

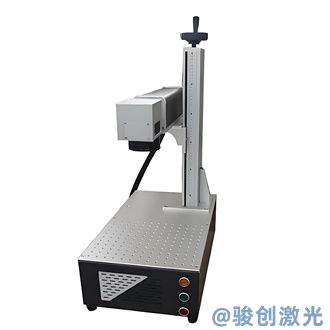

Introduction to JunChuang Mini Laser Marking Machine
The JunChuang Mini Laser Marking Machine, characterized by its compact size and stable placement, saves valuable space for users. This machine adopts a maintenance-free design, ensuring that no additional maintenance is required during its 100,000-hour lifespan, significantly reducing operational costs. Its processing speed is astonishing, reaching 2-3 times that of traditional laser marking machines, effectively enhancing production efficiency.
Environmental adaptability is another highlight of this machine. Whether in harsh industrial environments or in precision laboratories, it can operate continuously and reliably, unafraid of challenges. This makes it an ideal choice for marking tasks such as barcodes, QR codes, text and graphics, regular and irregular serial numbers, and more.
In terms of application scope, the JunChuang Mini Laser Marking Machine demonstrates strong adaptability. It is widely used in the electronics, electrical appliances, watchmaking, jewelry, hardware, instrumentation, signage, automobile manufacturing, shipbuilding, aerospace, and other industries.
Parameter | Description |
Laser Type | Fiber Laser, UV Laser, CO? Laser, Green Laser |
Laser Power | 10W, 20W, 30W, 50W, etc. |
Laser Wavelength | Fiber: 1064nm, UV: 355nm, CO?: 10600nm, Green: 532nm |
Marking Area | 70mm×70mm, 100mm×100mm, 150mm×150mm |
Minimum Line Width | 0.01mm to 0.1mm |
Minimum Character Height | 0.2mm |
Repeat Positioning Accuracy | ±0.01mm |
Marking Speed | Up to 7000mm/s |
Cooling Method | Air Cooling or Water Cooling (depending on laser type) |
Input Voltage | 110V or 220V (50/60Hz) |
Machine Power | < 500W (depending on model) |
Operating System | Windows OS, compatible with dedicated software (e.g., EZCAD) |
Software Supported Formats | PLT, AI, DXF, BMP, JPG, PNG, etc. |
Machine Size | Approx. 400mm × 300mm × 500mm (varies slightly by model) |
Machine Weight | Approx. 20kg to 30kg |
Marking Materials | Metals: Stainless steel, aluminum, copper, titanium; Non-metals: Plastic, ceramic, leather, glass, etc. |
Operating Temperature | 0℃ to 40℃ |
Relative Humidity | 10% to 85% (Non-condensing) |
Control Method | USB connection, software control |
Optical System | High-speed scanning galvo + high-precision F-θ lens |
Features
1. Portable Design: Compact size, easy to carry and install, suitable for desktop operation.
2. Simple Operation: Intuitive software interface, supports multiple languages.
3. Energy Efficient: Low energy consumption, no consumables required, environmentally friendly.
4. Wide Application Range: Suitable for various industries, including electronics, jewelry, signage, hardware, and more.
